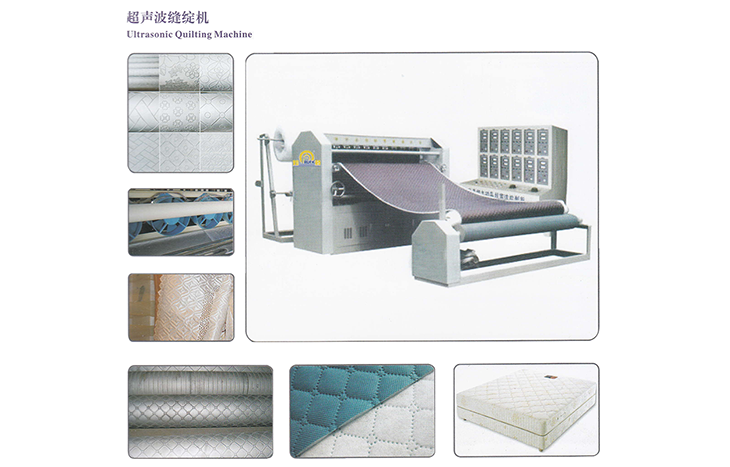

超声波缝绽机 Ultrasonic Quilting Machine

超声波缝绽机 Ultrasonic Quilting Machine


技术参数

Technical Parameter





型号 Model 电源  Power Source有效宽度 Sewing width频率 Frequenc包装体积 Packing Volume
RF-1550 380V/50-60hz1550mm20KHZ10CBM
RF-1850380V/50-60hz1850mm20KHZ10.21CBM
RF-2300380V/50-60hz2300mm20KHZ12CBM



结构:


本机采用最新式超声波控制箱,功率强劲稳定,进口电子配件,完善的冷却系统保证长时间连续工作。内置多路超声波保护系统,确保主机安全稳定运行。


整机构成:


(1)复合主机


(2)超声波控制柜


(3)成品收卷机


(4)面料放置架


Structure


Adopt the latest ultrasonic control box with strong and stable power.It is suitable for long term working because of excellent cooling system.


Multi circuit ultrasonic protection system to make sure machine run safely and steadily.


Machine components:


1.Main machine,


2.Control cabinet(generators)


3.Finished products winding unit


4.Fabrics feeding rack


特征:


1免用针线,减少材料成本。


2.更具立体感,应时代潮流。


3.绗缝强度大,生产效率高,速度更快。


4.容易操作,因为人性的设计


5.花辊特殊材料制作,寿命长,点子深,更换简单,花型多样


6.广泛应用于床垫被面、床单、毛毯、座垫、冬季夹克长袍睡袋等


Characteristics


1.Adopt ultrasonic power to quilt and bond fabric together without needle and thread to reduce the cost of material


2.Different patterns can be designed according to different material and products requirements


3.High speed and productivity, strong welding strength, stable quality.


4.Easy to operate because of humanity design


5.Superior quality electronic accessories and excellent cooling system to make sure long term continuous working


6.Widely used in mattress,bedcover, bed sheet, blanket, seat cushion, winter jacket, robes,sleeping bag etc.
